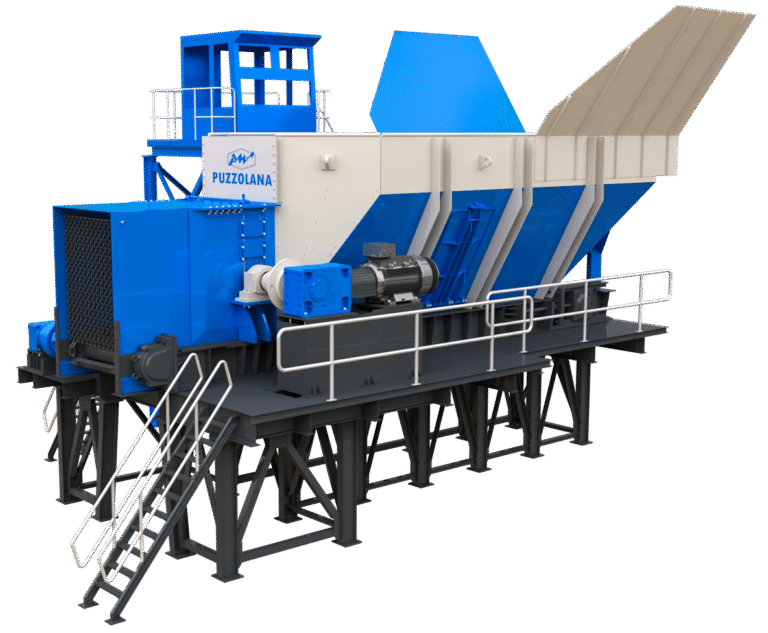

PFB 200X
Feeder Breaker
Capacity Chart
| Model No. | Dimensions (LXBXH) (mm) | Crusher Speed | Number of Picks | Drum Width | Pick Type | Crusher (kW) | Hopper Capacity (cu.m) | Conveyor(kW) | Input size (mm) | Output sizes (mm) | Crushing Capacity(TPH) |
| PFB 200X | 10250x4900x3300 | 90 | 104 | 1450 | Tungsten Carbide | 160 | 60 | 90/160 | 90/160 1500x1200x1200 | (-) 100/ 150 /200 /250 | upto 600* |
Note: Depends on input feed & output product size.
Features
- Rugged semi mobile skid mounted horizontal roll crusher plant along with heavy duty link chain.
- Robust drum type crusher roll design with adjustable height gap which helps to achieve variable product size from (-)100mm to (-)250mm.
- Customized flight bar spacing & pick lacing helps to achieve two dimensional sizing control.
- Direct feeding of coal with dumpers.
- Chain conveyor with reversible feature.
- Centralized lubrication system.
- Can be combined with secondary sizer & double roll crusher for secondary size reduction.
- Pedestal mounted rock breaker.
