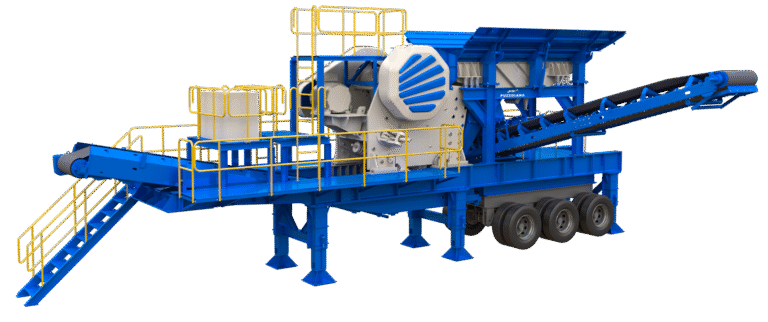

Speed Bharath Primary – PSBJ
Semi Mobile
Speed Bharath Primary – PSBJ serves the purpose of primary crushing ROM feed material for tough Quarrying, Mining, and demolition applications. Speed Baharth is a semi-mobile primary wheel plant for quick movement and can be erected /positioned by hydraulic jacks. Renowned for its remarkable durability, reliability in continuous operation, and affordable maintenance. The axle loads are 10-12 Ton per axle is within the permissible transport load limits.
Capacity Chart
| Model No. | Transport Dimensions (LxWxH) (mm) | Feeder | Jaw Crusher | |||||||
| Model | Size (LxW)(mm) | Bulk Density (T/Cu.m) | Power Input (kW) | Model | Feed Opening (mm) | Max. Feed Size (mm) | Drive Motor (kW) | Capacity (TPH) | ||
| PSBJ4432 | 13395x2929x4914 | PGF 1142 | 1100x4200 | 1.6-1.8 | 2X4.3 | PJC-4432 | 1115x815 | 650 | 110 | 220 |
| PSBJ11076 | 12351x2929x4914 | PGF 1142 | 1100x4200 | 1.6-1.8 | 2X4.3 | PJC-11076 | 1100x760 | 625 | 132 | 250 |
Note: The capacity figures and specifications are subjected to change with latest versions.
Features
- Modular Design.
- Quick setup time.
- Ease of transport.
- Minimum Civil work.
