PCC 0672, PCC 1072, PCC 1472

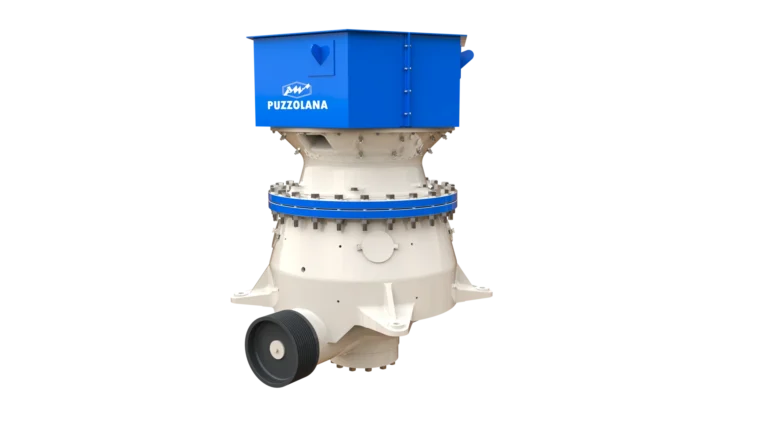

Cone Crusher H-Type
Capacity Chart
| Model No. | Motor Power Rating in kW | Crushing Chamber Type | Normal feed opening in mm | Throughput capacities in T.P.H at closed side setting in mm | ||||
| 10 | 13 | 16 | 19 | 22 |
||||
| PCC 0672 | 55-75 | FINE | 60 | 30 - 40 | 35 - 45 | 40 - 50 | ||
| PCC 1072 | 55-75 | MEDIUM | 100 | 40 - 50 | 45 - 55 | 50 - 60 | ||
| PCC 1472 | 55-75 | COARSE | 140 | 50 - 60 | 55 - 65 | 60 - 75 |
||
Note: The minimum CSS setting is decided by the chamber selection( extra coarse/ coarse/ medium) and operating conditions The capacity figures indicated in the chart are approximate total throughput based on the continuous regular feed having bulk density of 1.6Ton/Cu.M Actual capacity will vary depending on the type of material, feed graduation, moisture content and other site specific operating conditions.
Features
- Excellent choice for secondary & tertiary crushing.
- Heavy duty bearing design for increased service life, reduced power consumption & maximizing machine efficiency.
- Finite Element Analysis for accuracy & simulation.
- High safety standards with CE certification.
- High performance with lowest operating & maintenance costs.
- Eco-friendly design with world class manufacturing process to generate efficient output.
- Automatic tamp iron release system.
- Auto Lubrication System.
- Instant crusher gap setting arrangement through main shaft control system.
