PBC 3200

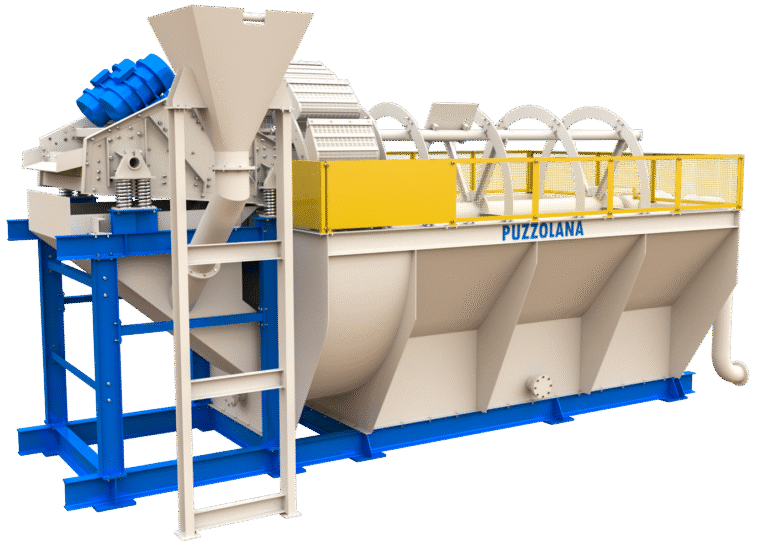

Bucket Wheel Type Classifier

Capacity Chart

Bucket wheel diameter (mm)Bucket width (mm)Number of bucketsScrew diameter (mm) Capacity (Max. TPH) Water requirement (Cu. M/hr) Motor power (kW) Dewatering screen size (LXW) mm Motor power for Dewatering screen (kW)
3200 650 16 2400 80-140 90-100 11.0 2400 X 1600 2.3 X 2 nos

Note: The capacity figures indicated in the chart are approximate total throughput based on the continuous regular feed having bulk density of 1.6 Ton/Cu.M. Actual capacity will vary depending on the type of material, feed gradation, moisture content and other site specific operating conditions.

Features

  • Effectively reduces (-) 150 microns percentage in sand.
  • Replaceable polyurethane mesh for buckets and screen deck.
  • Variable speed control.
  • Low power consumption.
